Node Voltage Method Supernode. Node voltage method & supernodes (12 points) 50 a m 5 v 1 20 a m + 40 λσ, 2a 30 a 10 a w v a. Clearly label all circuit parameters and distinguish the unknown parameters from the known.
nodal analysis with supernode and voltage source YouTube from www.youtube.com
The voltage source may be of the independent or dependent type, and the voltage source may include elements in parallel with it (such as a resistor ) but not in series with it. The two nonreference nodes form supernode if the voltage source (dependent or independent) is connected between two nonreference nodes. Apply kcl to the supernode to get 1.5 = + 3.5 + ⇒ − 2.0 = + va vb va vb 6 3 6 3 this is the same equation that was obtained using method 1.
Note That You Should Have Only One Unknown Variable For A Supernode Because The Voltage Of One The Nodes Can Be Expressed With Respect To The Voltage Of The Other One.
Always the difference between the voltage of two non reference nodes is known at supernode. The procedure for analyzing a circuit with the node method is based on the following steps. The supernode is indicated by the region enclosed by the dotted line.
A Supernode Satisfies The Kcl Like A Simple Node
A supernode has no voltage of its own; Used kcl to get 3 equations for the 3 unknowns as follows. The hint was to use a supernode, but i'm having trouble trying to make it and get it to work, i connected the top node and bottom node with the voltage source to create the supernode.
For The Circuit, Write The Supernode Equation (Indicate On The Figure Where It Is), And Both Equations That Define The Dependent Source Variables In Terms Of The Node Voltages.

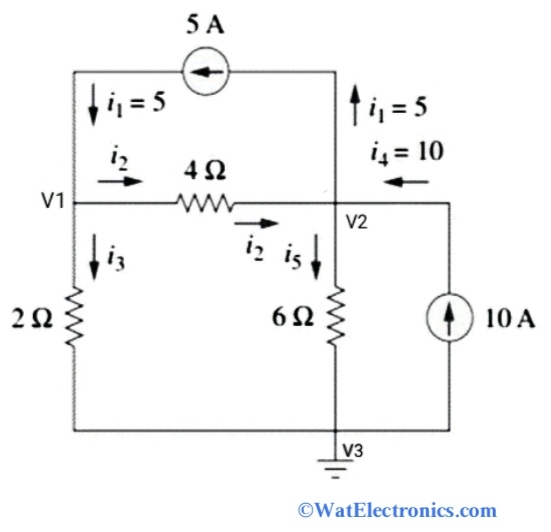

Node voltage is the method embedded inside the popular circuit simulator, spice. This tutorial introduces and explains the concept of supernode analysis. A supernode is the combination of two extraordinary nodes (excluding the reference node) between which a voltage source exists.
A Good Practice Is To Avoid Assigning A Voltage Label To Node Iii And Use As Its Voltage.
(1 pt) what is the voltage labeled vio? Applying kcl at both nodes of the voltage source 3. The method is identical for any size
Apply Kcl To The Supernode To Get 1.5 = + 3.5 + ⇒ − 2.0 = + Va Vb Va Vb 6 3 6 3 This Is The Same Equation That Was Obtained Using Method 1.
The voltage source may be of the independent or dependent type, and the voltage source may include elements in parallel with it (such as a resistor ) but not in series with it. I redrew the circuit so i. Clearly label all circuit parameters and distinguish the unknown parameters from the known.
