Emitter Follower Voltage Regulator

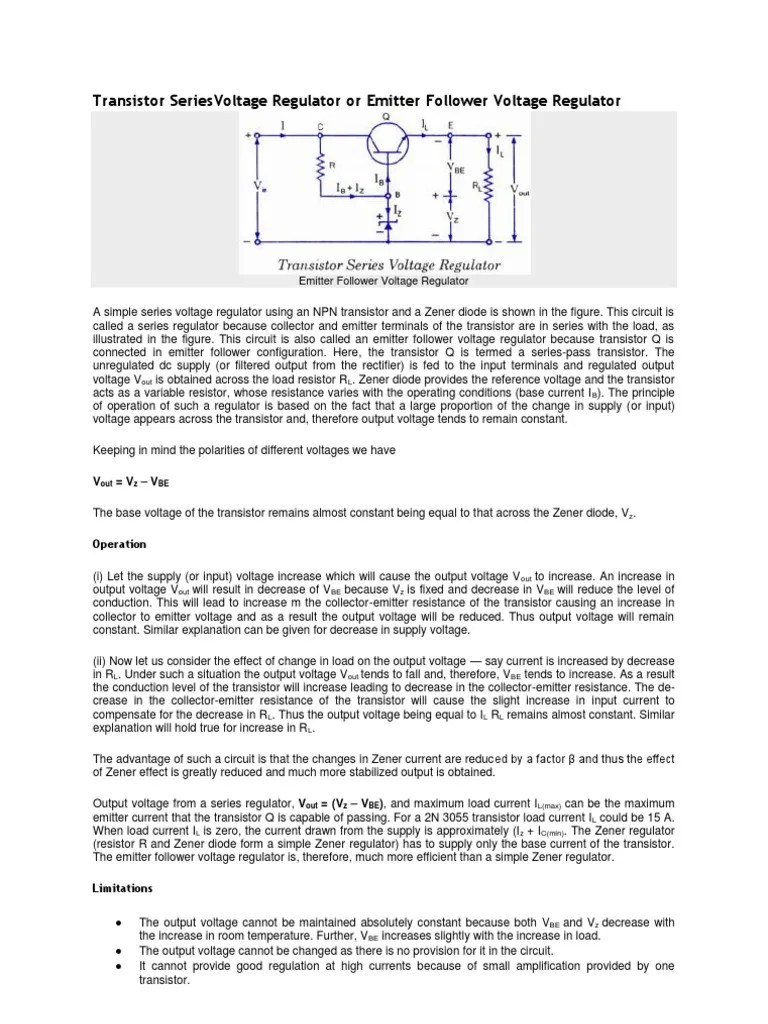

Emitter Follower Voltage Regulator. Such an emitter follower voltage regulator is more efficient than a normal zener regulator. Breadboard and schematic of for a simple voltage regulator.

Npn bjt emitter follower circuit made with 2n3904 bipolar junction transistor schematic and pictorial diagram by electronzap. Emitter follower series regulator emitter follower schematics. You may find unity voltage gain whenever an emitter follower stage is employed.
A Voltage Regulator Circuit Using An Op Amp, Emitter Follower Transistor, And Zener Diode, Is Simple To Draw From Memory If You Understand The Working Principle.
Voltage regulator 9v to 3.6v series emitter follower. Basically a series regulator could simply incorporate a zener shunt regulator, loading an emitter follower buffer circuit, as indicated above. An increase in output voltage vout will result in decrease of vbe because vz.
Zener Controlled Transistor Series Voltage Regulator Such A Circuit Is Also Named An Emitter Follower Voltage Regulator.
The emitter follower is the network you get from using an emitter terminal as output in a bjt configuration. The voltage gain in an emitter follower circuit is approximated to be av ≅ 1, which is quite good. The circuit diagram is shown below.
What Type Of Zener To Use For An Output Of 15V?
Also, this configuration’s input base signal is usually a shade higher than the output voltage. Simplified schematic diagram of 12.6v negative voltage regulator using pnp emitter follower. Can cap c8 & c7 be polarized?
Such An Emitter Follower Voltage Regulator Is More Efficient Than A Normal Zener Regulator.
The circuit can be considered to be identical to that of the shunt regulator. Npn bjt emitter follower circuit made with 2n3904 bipolar junction transistor schematic and pictorial diagram by electronzap. The same voltage divider with the transistor buffer at right will supply power to keep the voltage constant over its range of operation.
The Max1616 Linear Regulator Is Featured In The Design.
So at 1ma we expect to get 30 ohms, and at 30 ma we get 1 ohm. A normal zener regulator that has only a resistor and a zener diode has to supply the base current of the transistor. When the 0.5a load is connected, the circuit behaves as expected:
