Ac Voltage Meter Arduino. With a regular meter you can reverse the leads and it will work fine (and dc will read simply negative.) but, if you put voltage on the arduino's ground there can be a short to through the usb ground or power supply ground and bad things can happen to you, the arduino, or your. When ac voltage is 250v we get 5v output.

Jual Single Phase AC Voltage Sensor ZMPT101B Transformer from www.tokopedia.com

They are used in the measurement of both ac and dc voltages. Y = 0.38015*x a.c volts is converted into actual mains a.c value voltage. This voltage after rectification is taken by analog pin of arduino and by using formula.

Source: www.aliexpress.com

2)lets get the 6v down to 5v operating voltage of arduino so that it can measure or read, so voltage divider using 2 1k resistor so it comes to 3v ac(approximately) 3) to get a dc we have used a diode as a half wave rectifier The analog input pins will map input voltages between 0 and 5v into integer values between 0 and 1023 with.

Source: www.auscomtech.com.au

Voltmeters are an important piece of equipment that is associated with any kind of electronics project. The arduino detects the maximum value by reading analog voltage on channel 3 (a3) multiple times.

Source: www.cityelectronics.pk

The analog input pins will map input voltages between 0 and 5v into integer values between 0 and 1023 with. Arduino ac voltmeter will calculate the voltage of alternating current.

Source: www.aliexpress.com

This voltmeter can measure ac and dc voltages with automatic switching between the 2 signals, it also can automatically switch between measuring ranges (autoranging). Voltmeters are an important piece of equipment that is associated with any kind of electronics project.

Source: www.auscomtech.com.au

Maximum voltage that can be measured is found by simulating this circuit on proteus (explained in simulation section). If you stacked up a lcd display shield, analog pin a0 is automatically occupied by the button function.

Source: www.bukalapak.com

Arduino ac voltmeter will calculate the voltage of alternating current. Ac voltage = (250/1024) * adc_value

Source: solarduino.com

If you stacked up a lcd display shield, analog pin a0 is automatically occupied by the button function. Adjust the resistor r1 to get proper reading.

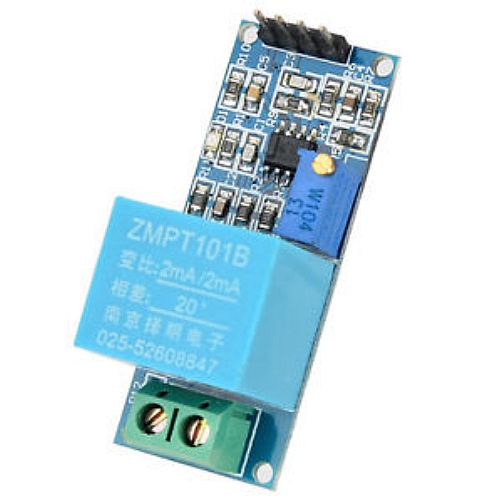

Source: www.ebay.com

If you apply 220v ac to the input, you will see a voltage sinusoidal diagram on the serial plotter. The analog input pins will map input voltages between 0 and 5v into integer values between 0 and 1023 with.

Voltmeters Are An Important Piece Of Equipment That Is Associated With Any Kind Of Electronics Project.

The base code, can be adapted to other projects. The arduino adc module can’t read analog negative voltages and we need to shift all the waveform to the positive side, this means we have to add a dc offset to the ac voltage signal produced by the mcp6v02 (u1) without affecting the gain again. This is the easy and the precise way to measure ac voltage of any shape, not like the other one that rectifies the signal or use a peak to peak measure to ca.

Step Down Voltage Is Obtained On L.v Side Of Transformer Which Is Suitable To Use Across Normal Power Rating Resistors.

Connect arduino as per circuit shown in figure 2.5, make ground common for arduino and circuit shown in figure. Then we get suitable voltage value across 4.7k resistor. This function measures the peak voltage of the ac waveform and converts the peak voltage into a root mean square (rms) voltage value.

Here In These Formula Val Is The Value That Is Read By Arduino As Analog Input, Which Is Further Multiplied By The Voltage That Is Been Supplied By Arduino And Thus To Get The Vout It Is Divided By The Cycle Of Time That Is Covered After Every Bit To Get The Value.

Y = 0.38015*x a.c volts is converted into actual mains a.c value voltage. If you stacked up a lcd display shield, analog pin a0 is automatically occupied by the button function. Upload the following code to your arduino and then open the serial plotter window from the tools menu.

If You Apply 220V Ac To The Input, You Will See A Voltage Sinusoidal Diagram On The Serial Plotter.

Working of arduino based ac voltmeter: If you stacked up a lcd display shield, analog pin a0 is automatically occupied by the button function. This diy ac wattmeter is designed for the effective measurement of.

This Is The Main Code Of The Arduino Ac Voltmeter Project.

This arduino project shows how to build a digital voltmeter which can measure up to 600v. Arduino has the ability to measure ac voltage and ac current (via module) by analog input pins. /* this code works with esp8266 12e or arduino and zmpt101b ac voltage sensor up to 250 vac 50 /60hz * it permits the measure of true rms value of any ac signal, not only sinewave * the code uses the sigma standard deviation method and displays the value.
