Transformer Oil Breakdown Voltage Value. Preliminary arcing should be ignored. The sample is taken out from the transformer tank and the bdv of the oil is checked by bdv tester.

best price Transformer Oil Breakdown Voltage Tester Oil from www.equipmentimes.com

Mineral oil is the most common insulating fluid and has been in use since the late 19th century. Material has a small breakdown voltage value. In our country minimum breakdown voltage for oil transformers when it is tested according iec is 30 kv/mm

Source: www.toplabkits.com

Shaheen3 1department of electrical engineering, college of engineering, taif university, taif, 21944, saudi arabia 2electrical power and machines department, faculty of engineering, kafr elsheikh. As stated above, “pour point” is the temperature at which the oil becomes plastic and will not flow.

Source: www.indiamart.com

Clean transformer oil generally contains no water and other impurities, which allows it to have sufficient breakdown voltage (over 60 kv). Material has a small breakdown voltage value.

Source: www.highvoltage-testequipment.com

The bdv of transformer oil does not depend on the voltage rating of the transformer. In our country minimum breakdown voltage for oil transformers when it is tested according iec is 30 kv/mm

Source: www.equipmentimes.com

In this paper , a sample of several paper types easily found on the market in general, such as photo paper, duplex paper, and samson kraft paper, were used for testing. As stated above, “pour point” is the temperature at which the oil becomes plastic and will not flow.

Source: www.topchinasupplier.com

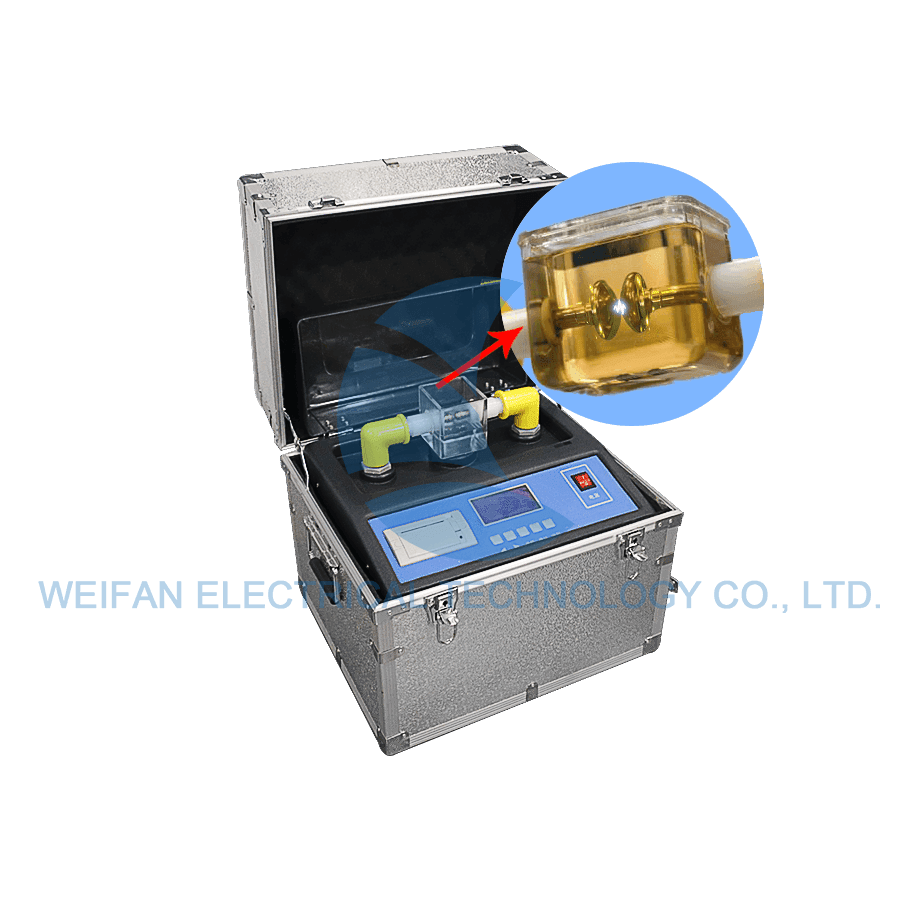

Clean transformer oil generally contains no water and other impurities, which allows it to have sufficient breakdown voltage (over 60 kv). Jy6611 transformer oil breakdown voltage tester use advanced voltage breakdown control technology which will keep breakdown energy in a very low level,that will avoid pollution to oil sample during testing and make sure the test result are accurate and reliable.

Source: www.maintworld.com

The cleanliness class of the oil is allowed to down grade by one class after filling. 7 all of these oil types can be tested for dielectric breakdown voltage and tested with megger ots range test sets.

Source: mfrdo.com

The electric field strength at this time, called the dielectric strength of the oil, indicates the ability of the insulating oil to resist the electric field. Shaheen3 1department of electrical engineering, college of engineering, taif university, taif, 21944, saudi arabia 2electrical power and machines department, faculty of engineering, kafr elsheikh.

Source: www.sheryna.com.my

The relationship between the breakdown voltage u (kv) and the dielectric strength e (kv/cm) is: Clean transformer oil generally contains no water and other impurities, which allows it to have sufficient breakdown voltage (over 60 kv).

The Electric Field Strength At This Time, Called The Dielectric Strength Of The Oil, Indicates The Ability Of The Insulating Oil To Resist The Electric Field.

Mineral oil is the most common insulating fluid and has been in use since the late 19th century. Dielectric strength of oils is also determined by the dielectric loss tangent or “tan delta.” Minimum transformer bdv value for either 11 kv, 22 kv, 132 kv is the same.

The Bdv Test Kit Is Basically A High Voltage Unit And.

This is due to the small gap distance between electrodes as we set to 1 mm for the limit The cleanliness class of the oil is allowed to down grade by one class after filling. 7 all of these oil types can be tested for dielectric breakdown voltage and tested with megger ots range test sets.

The Final Part Of The Basic Oil Quality Assessment Trio (Along With Moisture & Acidity) Is The Breakdown Voltage Strength Otherwise Known As The Bdv.

The critical voltage value at which the insulating oil breaks down is called the breakdown voltage. The sample is taken out from the transformer tank and the bdv of the oil is checked by bdv tester. Prediction of transformer oil breakdown voltage with barriers using optimization techniques sherif s.

The Relationship Between The Breakdown Voltage U (Kv) And The Dielectric Strength E (Kv/Cm) Is:

As per iec, the minimum breakdown voltage of transformer oil should be 30 kv. Shaheen3 1department of electrical engineering, college of engineering, taif university, taif, 21944, saudi arabia 2electrical power and machines department, faculty of engineering, kafr elsheikh. The transformer oil is filled in the vessel of the testing device.

A Rating Of 30 Kv Is The Minimum Breakdown Voltage At Which Transformer Oil Can Be Safely Used In A Power Transformer.

Preliminary arcing should be ignored. The main aim of such a test is to examine the insulating property of the oil in a dielectric transformer. Transformer breakdown voltage strength, when to replace the oil.
